Why Your Austin Patio Cover Turns Into a Sauna by July (and the 3 Design Choices That Fix It)

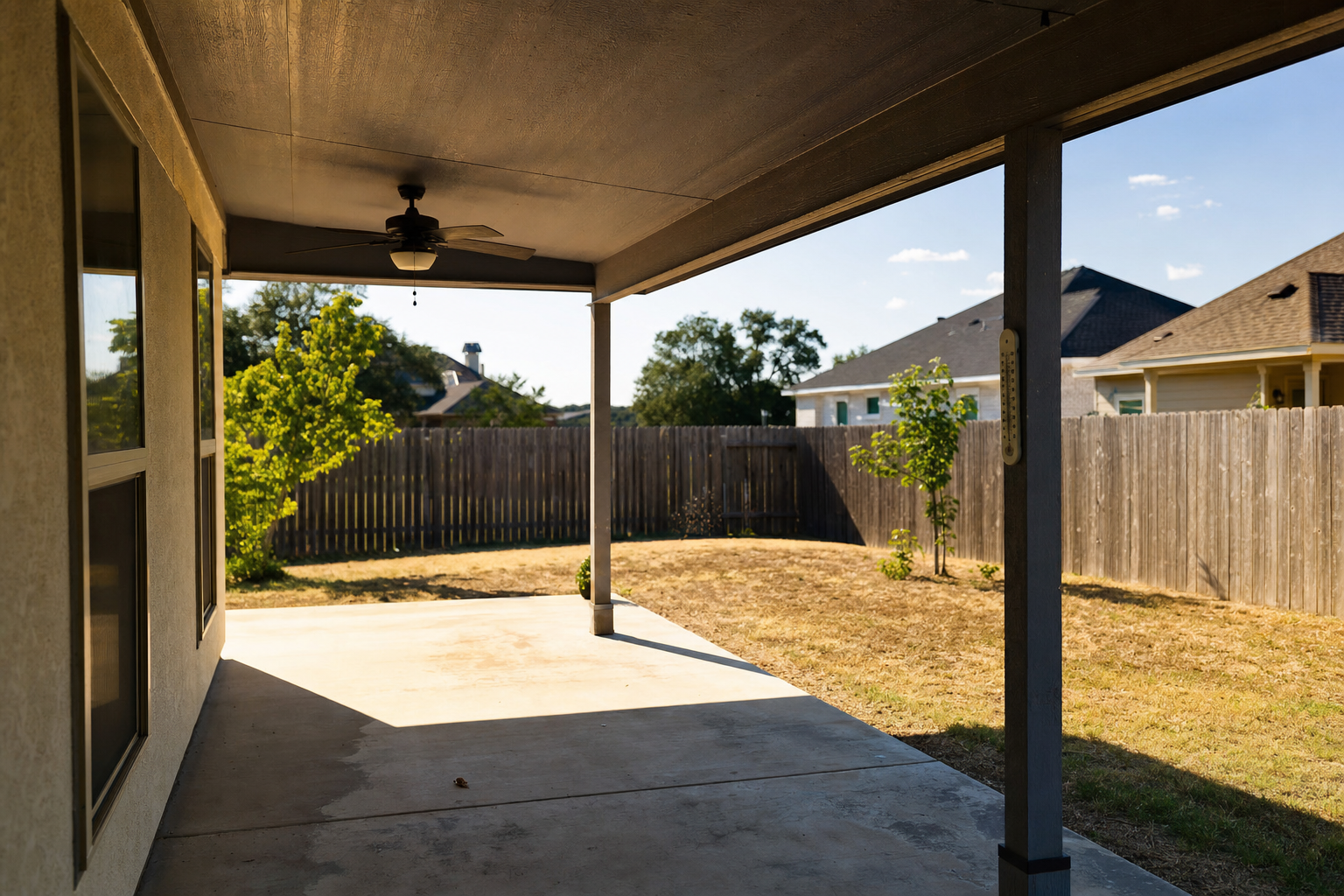

The 'Covered but Still Scorching' Problem Every Austin Homeowner Knows

You spent good money on a patio cover. You imagined evening dinners outside, Sunday mornings with coffee, maybe a ceiling fan humming overhead. Then July arrived — and you haven't stepped foot out there since June 28th.

This isn't an unusual complaint. It's one of the most common calls we take at Austin Pro Siding every summer. A homeowner adds a covered patio expecting shade and ends up with a radiant oven. The roof blocks the direct sun, sure — but Central Texas heat doesn't just fall from above. It radiates up from concrete and brick, bounces off light-colored walls, and pools in any structure that restricts airflow. If your patio cover wasn't designed around those realities, you built a lid over a heat trap.

Three specific design decisions determine whether your covered patio is a retreat or a sauna. Here's what they are and how to get them right — whether you're planning a new structure or fixing an existing one.

Design Choice #1: Solid, Insulated, or Lattice — Picking the Right Cover for Texas Sun

The material and style of your roof panel is the single biggest variable in how hot your patio gets. Most homeowners default to whatever looks good in a showroom photo. That's usually the wrong call for Austin's extreme summer climate.

Solid Aluminum or Wood — The Heat Collector

A flat, solid cover with no insulation layer acts like a griddle. It absorbs solar radiation all day long — and a dark aluminum panel in direct Texas sun can reach surface temperatures above 160°F. That heat radiates downward right into your seating area, even after the sun moves past. You're essentially sitting under a giant heat lamp.

Insulated Panel Systems — The Clear Winner

Insulated aluminum panel systems (sometimes called "Insulated Patio Roof" or "IRP" systems) sandwich a foam core — typically 2 to 4 inches of EPS or polyiso foam — between two aluminum skins. That foam layer dramatically reduces the amount of heat that transfers through the panel. The U.S. Department of Energy notes that insulation's R-value directly determines how much thermal energy bleeds through a building assembly — and the same principle applies here. An insulated cover with R-11 or higher keeps far more of that radiated heat outside the occupied zone.

Lattice and Pergola-Style Covers — Better Than You'd Think

Open lattice doesn't block all direct sun, but it does something solid covers can't: it allows hot air to escape upward. If you add a shade cloth, climbing plants, or a retractable canopy, you get reasonable solar protection without creating a heat pocket. In Austin's driest months, a lattice pergola with a ceiling fan can actually feel cooler than a poorly designed solid cover. The key is intentional airflow — which brings us to design choice #3.

Design Choice #2: The Orientation and Roofline Mistakes That Cook West-Facing Patios

Where your patio faces matters more than almost any other variable. And yet most patios are placed based on where the backdoor happens to be, not where the sun is least punishing.

West-Facing Patios Are the Hardest to Fix

Austin's most brutal sun comes from the west and southwest between 2:00 PM and sunset. If your patio opens to the west, you're taking a direct shot of low-angle sun that no overhead cover fully blocks — it enters horizontally under the roofline. This is why so many west-facing rooms feel like ovens, a problem we've discussed in depth when it comes to west-facing window replacement. The same physics applies outdoors. A deep overhang of at least 6 to 8 feet, combined with a partial knee wall or privacy screen on the western exposure, is often required to make a west-facing patio genuinely usable in summer.

Low Pitch and Tie-In Problems

When a patio cover is attached to the house and tied into the existing roofline at a low pitch — say, 1/12 or 2/12 slope — a few bad things happen simultaneously. Drainage slows down dramatically (standing water is a warranty killer and a leak source). More importantly, the low angle traps hot air between the cover and the house wall. There's no exit point. The heat just builds.

A minimum pitch of 3/12 to 4/12 improves drainage and creates enough headspace differential for hot air to move. If you're tying into an existing home structure, your contractor also needs to flash that connection properly — a gap or improper ledger attachment is one of the leading causes of water intrusion where patio covers meet the house.

It's worth noting that roofline integration issues are similar to what we see in full roofing projects. The same flashing and slope principles that protect metal roofing systems apply at a smaller scale when attaching a patio cover to your home's structure.

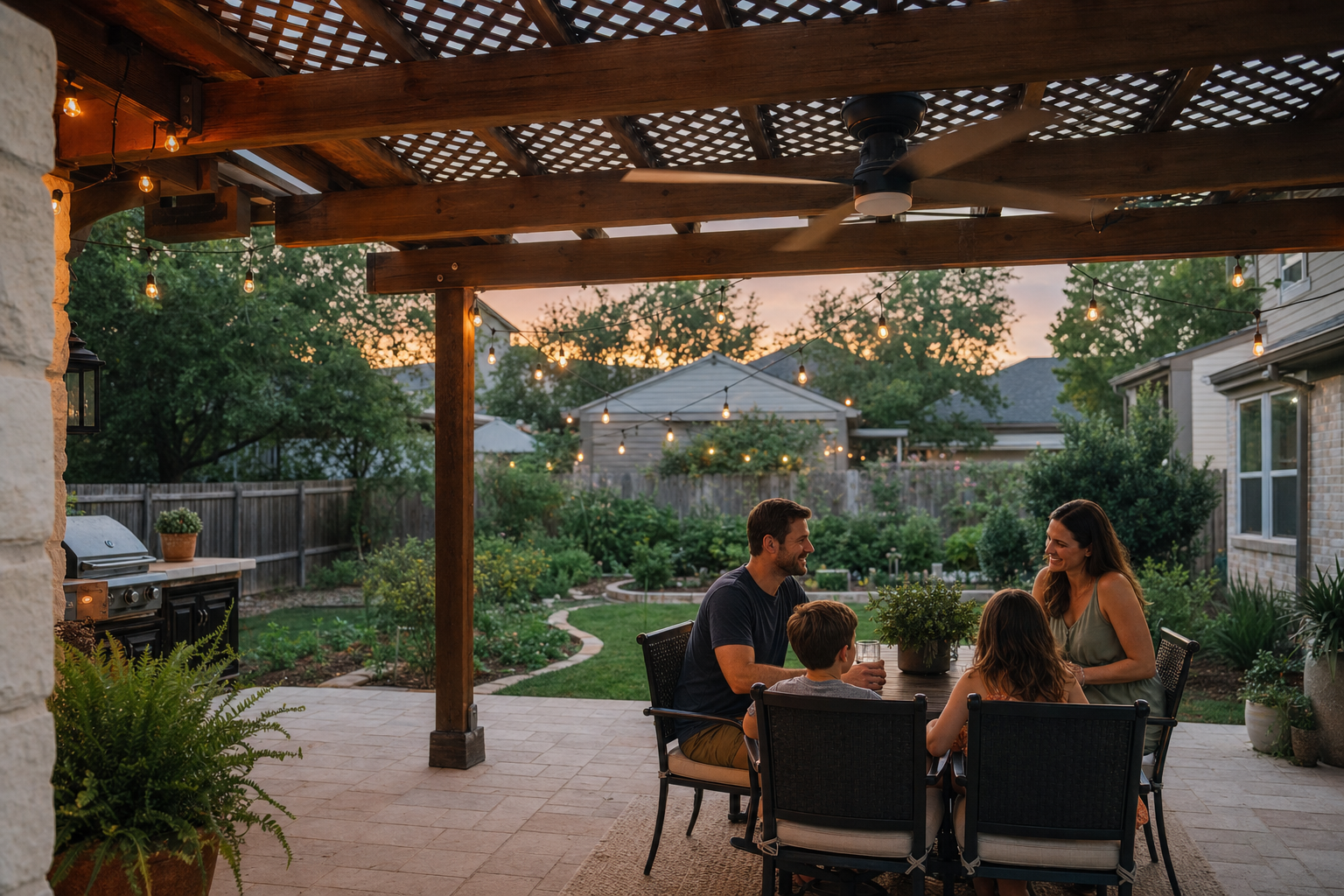

Design Choice #3: Ventilation and Ceiling Strategy — What Actually Makes the Space Livable

You can have an insulated panel and a favorable orientation and still end up with a hot patio if you get the ventilation wrong. This is where most budget installs cut corners.

Open Gables and Vented Panels

If your patio cover has enclosed gable ends — the triangular sections at each end of a sloped roof — those need to be vented or left open. Sealed gable ends trap a column of superheated air directly above the occupied space. Even simple louvered vents in the gable allow that air to escape as it rises. Some insulated panel systems also offer vented ridge options that work like a passive chimney, pulling hot air upward continuously.

Ceiling Fans — Placement Matters More Than Size

A ceiling fan won't lower the temperature, but it makes 95°F feel like 85°F through evaporative cooling on your skin. The mistake most homeowners make is installing fans too close to the outer edge of the cover, where the moving air immediately escapes. Center-mount placement over the primary seating zone, at 9 to 10 feet above the floor, is the most effective position. For larger patios over 300 square feet, two fans on opposing mount points work better than one oversized unit.

According to the Department of Energy, ceiling fans can allow you to raise your thermostat setting by about 4°F — and the outdoor equivalent is even more dramatic when airflow is directed across occupants in a covered space.

Lighting Placement as a Heat Source

Recessed can lights mounted in a solid insulated panel ceiling generate real heat — especially older halogen or incandescent fixtures. In a 200-square-foot patio ceiling, six 65-watt incandescent cans add meaningful radiant heat directly overhead. Switching to LED fixtures rated for damp locations eliminates this issue entirely and reduces your lighting energy load by 80% or more.

What to Ask a Patio Cover Contractor Before You Sign Anything

The patio cover industry in Central Texas has a wide range of quality. Some contractors do exceptional work. Others are storm chasers and low-bid operators who disappear after the check clears. Here's what to ask before you commit:

• What's the panel R-value, and can you show me the spec sheet? A reputable contractor can hand you a data sheet. If they can't, that's your answer.
• How is the ledger attached to the house, and how will the connection be flashed? This is where leaks start. The ledger board should be through-bolted into structural framing — not just the exterior sheathing or siding — and all penetrations should be flashed with flexible membrane tape before any trim goes on.
• What's your wind uplift rating? Austin sits in a zone where summer thunderstorms routinely produce 60 to 80 MPH gusts. Your cover needs to be engineered for that load. Ask for the uplift rating in PSF (pounds per square foot) and verify it against your local code requirements.
• Will this require a permit, and will you pull it? In Austin, most attached patio covers over 200 square feet require a building permit. Some contractors skip this to move faster and charge less. That decision is always yours to regret later — especially when it surfaces during a home sale or insurance claim.
• Does my HOA need to approve the design? Many Austin-area HOAs have strict rules about cover materials, colors, and roof pitch. Get this cleared before you order materials. A good contractor will help you navigate this — a bad one will tell you it's probably fine.

If you're also thinking about professional patio cover installation from a team that handles permitting, structural attachment, and finish work under one roof, it's worth a conversation before you commit to a single-trade operator.

The Bottom Line on Building a Patio That Actually Works in Austin

A covered patio is one of the best home improvement investments you can make in Central Texas — but only if it's designed for how Texas heat actually behaves. That means insulated panels over solid or bare aluminum, enough roof pitch to move air and water, ventilation at the gable ends, fans positioned over the occupants, and a contractor who pulls permits and flashes the ledger correctly.

Get those five things right and you'll have a space you use from April through October. Get them wrong and you'll have a very expensive structure that collects dead leaves from November through March.

A quick conversation with an experienced Austin patio contractor — one who builds these structures specifically for Central Texas summers — can save you from a costly rebuild. Check our reviews from Austin homeowners who've been through the process, or schedule a free consultation to talk through your specific situation.
